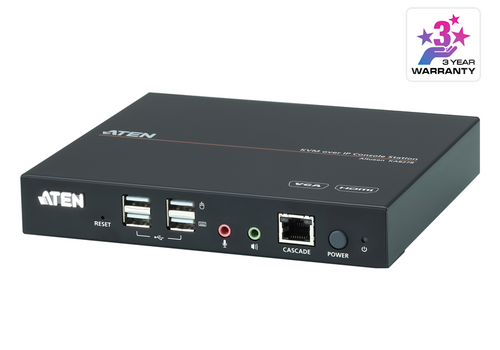

Aten VGA and HDMI Dual View USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with design for 0U rack space

Product Description

Aten VGA and HDMI Dual View USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with small form factor design for 0U rack space A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN’s KVM over IP switches* Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200 Panel Array Mode – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously Space-saving 0U rack mount design for rear rack mounting Specifications Connectors Video 1 x HDB-15 Female 1 x HDMI Female RS-232 1 x DB-9 Male Power 1 x DC Jack Audio 2 x Audio Jack Female LAN Ports 1 x RJ-45 Female Keyboard 1 x USB Type-A Female Mouse 1 x USB Type-A Female USB Port 2 x USB Type-A Female Cascade Port 1 x RJ-45 Female LEDs Power 1 (Blue) Switches Power 1 x Push button Reset 1 x Semi-recessed Push button Video 1920 x 1200 @ 60Hz Power Consumption DC 5V:6.53W:56.18BTU Environmental Operating Temperature 0 -40°C Storage Temperature -20 - 60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal Weight 0.80 kg ( 1.76 lb ) Dimensions (L x W x H) 17.42 x 15.54 x 2.88 cm (6.86 x 6.12 x 1.13 in.) Compatible Appliances KVM over IP switches KN1132V, KN2116VA, KN4116VA, KN2132VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2124VA, KN4124VA, KN2140VA, KN4140VA, CN8000A, KN1000A.
