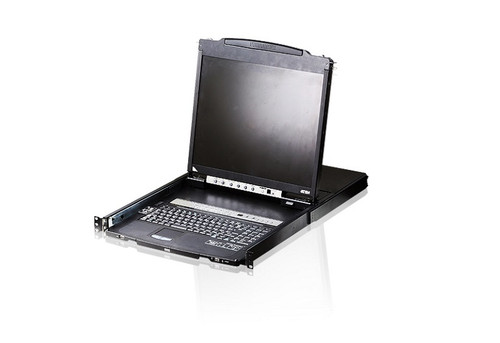

Aten Rackmount KVM Switch Dual Rail 8 Port VGA PS/2-USB w/ 19' LCD Display, 2x Custom KVM Cables Included, 1280x1024@75hz Display, LED Illumination

Product Description

Computer Connections: ◦Direct: 8 ◦Max.: 256 (via Daisy-chain) •Port Selection: OSD, Hotkeys, Pushbuttons •Connectors: ◦External Console Port: 1 x SPHD-18 Male (Yellow) ◦External Mouse Port: 1 x USB Type-A Female (White) ◦KVM Ports: 8 x SPHD-17/18 Female (Yellow) ◦Daisy-chain Port: 1 x DB-25 Male (Black) ◦FW Upgrade: 1 x RJ-11 Female (Black) ◦Power: 1 x 3-prong AC Socket ◦USB Port: 1 x USB Type-A Female •Switches: ◦Reset: 1 x Semi-recessed Pushbutton ◦Power: 1 x Rocker ◦F/W Upgrade: 1 x Slide ◦LCD Adjust: 4 x Pushbutton ◦LCD On/Off: 1 x LED Pushbutton (Orange) ◦Port Selection: ◦2 x Pushbutton (LCD); ◦8 x Pushbutton (Keyboard) ◦Station Selection: 2 x Pushbutton •LEDs: ◦On Line: 8 (Orange) ◦Selected: 8 (Green) ◦Station ID: 2 x 7-segment LED Display (Orange) ◦Power: 1 (Dark Green) ◦Lock: ◦Num: 1 (Green) ◦Caps: 1 (Green) ◦Scroll: 1 (Green) •Emulation - Keyboard/Mouse: PS/2, USB •Video: 1280 x 1024 @ 75 Hz; DDC2B •Scan Interval (OSD Select): 1–255 sec. •I/P Rating: 100–240 V AC, 50/60 Hz, 1 A •Power Consumption: 120V, 30.1W ; 230V, 30.7W •Environment: ◦Operating Temp.: 0 ~ 50°C ◦Storage Temp.: -20 ~ 60°C ◦Humidity: 0 ~ 80% RH, Non-condensing •Physical Properties: ◦Housing: Metal + Plastic ◦Weight: 14.83 kg ◦Dimensions (DxWxH): 68.04 x 48.00 x 4.40cm •Package Contents: ◦1 x CL5808 KVM Switch with Standard Rack Mounting Kit ◦2 x Custom KVM Cables ◦1 x 5-in-1 Console Cable ◦1 x Firmware Upgrade Cable ◦1 x Power Cord ◦1 x User Instructions
