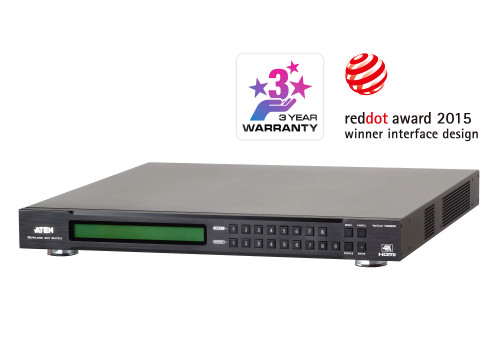

Aten Professional Matrix 8x9 4K HDMI Matrix with Scaler, Seamless Switch, control via front-panel pushbuttons, IR remote and RS232 control

Product Description

Aten 8x9 4K HDMI Matrix with Scaler, Seamless Switch, Video Wall support, control via front-panel pushbuttons, IR remote and RS232 control, EDID management, FrameSync ensures synchronised video across screens in a video wall 8 x 9 HDMI input/output connections Seamless Switch –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions* HDMI (3D, Deep color, 4K); HDCP 2.2 compatible Multiple Control Methods – system management via front-panel pushbuttons, RS-232 control, and Web GUI/Telnet via Ethernet connections Video Input Interfaces 8 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance 1.8 m Video Output Interfaces 9 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance 15 m Video Max. Data Rate 10.2 Gbps (3.40 Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC) Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Max. Distance Up to 15 m Audio Output 1 x Mini Stereo Jack Female (Green) Control RS-232 Connector: 1 x DB-9 Female (Black); Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No Ethernet 1 x RJ-45 Female EDID Settings EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support) Connectors Power 1 x 3-prong AC Socket Power Maximum Input Power Rating 100-240 VAC;50-60Hz;1.0A Power Consumption AC110V:79.5W:373BTU AC220V:78.1W:366BTU Environmental Operating Temperature 0-50°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 7.05 kg ( 15.53 lb ) Dimensions (L x W x H) 43.24 x 45.03 x 4.40 cm (17.02 x 17.73 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
