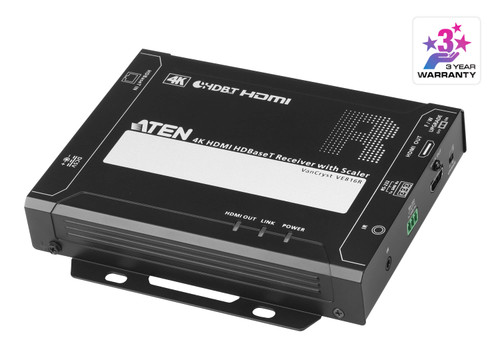

Aten HDMI HDBaseT Receiver with Scaler, supports up to 4K @ 100m, 1080p @ 150m over long reach mode, bi-directional IR and RS232

Product Description

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display. Superior video quality: • 4K up to 100 m • 1080p up to 150 m HDBaseT Long Reach Mode – activated by RS-232 commands, Long Reach Mode extends signals up to 150 m, 1080p, via a single Cat 5e/6 cable Scaler – scales videos of different resolutions to their optimal output for display and to avoid black screen* Video Wall – features video wall profiles that allows for custom screen layouts via an intuitive web GUI** Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions** HDBaseT Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate Remote Firmware upgrade Built- in 8KV / 15 KV ESD protection Plug-and-play Rack-mountable Video Max. Data Rate 10.2 Gbps (3.40 Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, 4K, Deep Color) HDCP2.2 Compatible HDBaseT Compatible Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Connectors Unit To Unit 1 x RJ-45 Female Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal
