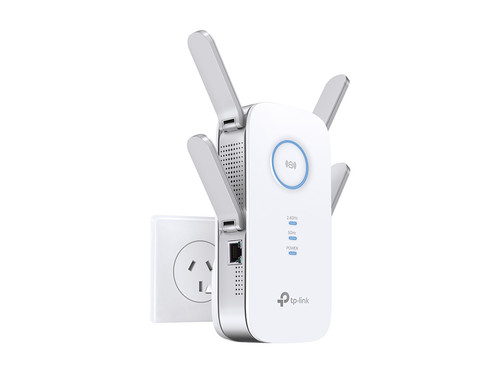

TP-Link RE650 AC2600 2600Mbps Wi-Fi Range Extender 800Mbps@2.4GHz 1733Mbps@5GHz 1x1Gbps LAN 4xAntennas 4×4 MU-MIMO Beamforming Access Point Mode
Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage by up to 14,000 sq. ft.
4-Stream for AC2600 Dual Band Wi-Fi – Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz
4×4 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections
Gigabit Ethernet Port – Provide faster wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
HARDWARE FEATURES
Plug Type EU, UK, US
Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface 1 x 10/100/1000M Ethernet Port (RJ45)
Button WPS Button, Reset Button, LED Button, Power Button
Power Consumption 12W(max power consumption)
Antenna 4 x external
Dimensions ( W x D x H ) 6.4 x 3.4 x 1.6 in. (163 x 86 x 40mm)
WIRELESS FEATURES
Frequency 2.4GHz & 5GHz(11ac)
Signal Rate 5GHz:Up to 1733Mbps
2.4GHz:Up to 800Mpbs
Reception Sensitivity 5GHz:
11a 6Mbps:-96dBm@10% PER
11a 54Mbps: -78dBm@10% PER
11ac HT20 mcs8: -69dBm@10% PER
11ac HT40 mcs9: -66dBm@10% PER
11ac HT80 mcs9: -63dBm@10% PER
2.4GHz
11g 54M: -79dBm@10% PER
11n HT20 mcs7: -77dBm@10% PER
11n HT40 mcs7: -74dBm@10% PER
Wireless Modes Range Extender/Access Point
Wireless Functions Wireless Statistic
Concurrent Mode boost both 2.4G/5G WiFi band
Access Control
LED Control
Domain Login Function
Wireless
