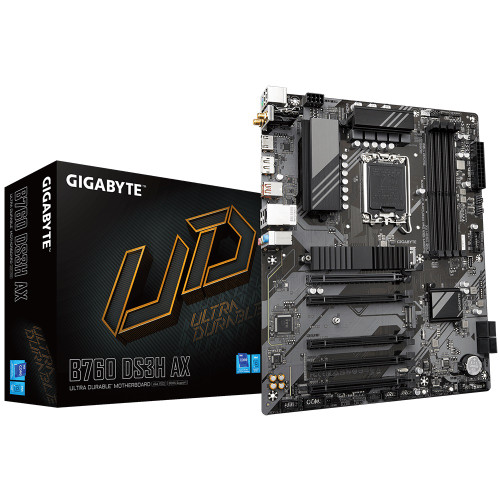

Gigabyte B760 DS3H AX Intel LGA 1700 ATX Motherboard, 4x DDR5 ~128GB, 5x PCI-E x16, 2x M.2, 4x SATA, 1x USB 3.2, 1x USB-C, 4x USB 2.0

Product Description

Gigabyte B760 DS3H AX Intel LGA 1700 ATX Motherboard, 4x DDR5 ~128GB, 5x PCI-E x16, 2x M.2, 4x SATA, 1x USB 3.2, 1x USB-C, 4x USB 2.0 Features: Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution Dual Channel DDR5：4*DIMMs XMP Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design Fast Networks：GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity：Rear U Specification: CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU Chipset Intel® B760 Express Chipset Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Supp Onboard Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Expansion Slots 5 x PCI Express x16 slot Storage Interface 2 x M.2 connector 4 x SATA 6Gb/s connectors Back Panel Connectors 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio ja Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm
