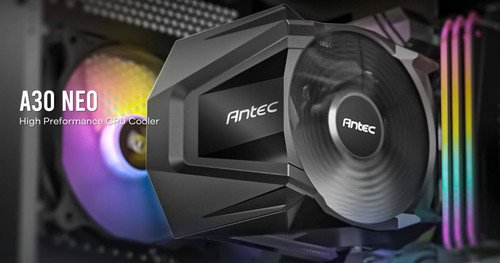

A30 Neo
High Preformance CPU Cooler
PWM Fan
The fan blades feature a unique wave-like texture on the surface, providing a stunning visual effect. The 4-pin PWM fan achieves a balance between cooling and silence. With a maximum airflow of 43.82 CFM, it delivers efficient cooling performance to your CPU.
EASY
INSTALLATION
Easy-install bilateral
snap-on buckle.
2 Direct-Touch Copper Heat Pipes
The direct-touch heat pipe base enhances heat conductivity
and provides superior cooling performance.
Universal CPU Socket Compatibility
Universal Retention Module compatible with both Intel and AMD CPU sockets
Model Name A30 Neo
Cooling Type Air Cooling
Product Dimension 98 x 86 x 146mm (DWH)
Dimensions 92 x 92 x 25mm
Type PWM Fan
Speed 800-2000 RPM
Airflow 43.82 CFM max.
Noise 23.2db (A) ±20%
Air Pressure 2.11mmH2o (Max)
Connector Fan: 4 pin PWM
Model Name A30 Neo
Cooling Type Air Cooling
Product Dimension 98 x 86 x 146mm (DWH)
Dimensions 92 x 92 x 25mm
Type PWM Fan
Speed 800-2000 RPM
Airflow 43.82 CFM max.
Noise 23.2db (A) ±20%
Air Pressure 2.11mmH2o (Max)
Connector Fan: 4 pin PWM
Rated Voltage 12VDC
Rated Current 0.20A
Heat Pipe Dimension Φ6mm
Heat Sink Material 2 Heat Pipes, Aluminum Fins
Socket Compatibility Intel Core I3: 775 / 115X / 1200 / 1700
Intel Core I5: 775 / 115X / 1200 / 1700
AMD: AM3 / AM4 / AM5
