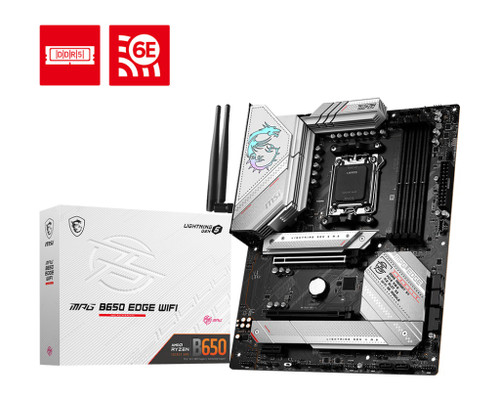

MSI MPG B650 EDGE WIFI AMD AM5 ATX Motherboard, 4x DDR5 ~128GB, 2x PCI-E x16, 1x PCI-E x1, 3x M.2, 6x SATA, 2x USB2.0, 7x USB 3.2, 1x USB-C

Product Description

MSI MPG B650 EDGE WIFI CHIPSET AMD B650 CPU SUPPORT Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 MEMORY 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO ONBOARD GRAPHICS 1x HDMI 1x DisplayPort Support HDMI 2.1 FRL, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) STORAGE 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) LAN Realtek® RTL8125BG 2.5Gbps LAN
