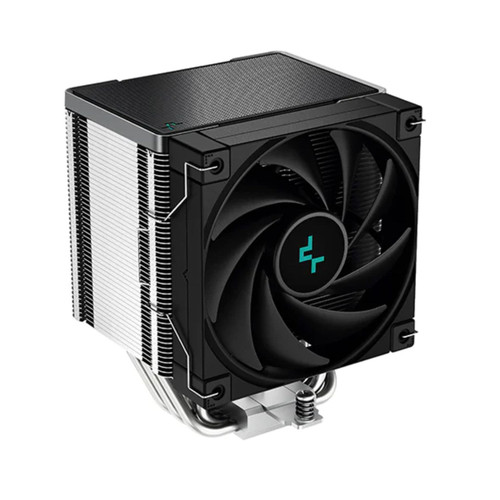

AK500The DeepCool AK500 is a high-performance single tower CPU cooler that maximizes cooling potential with a large heat sink, five advanced heat pipes, and a highly efficient 120mm FDB fan.
Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155AMDAM5/AM4
Application For
Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMDAM5/AM4
Technical Spec
Product Dimensions 127×117×158 mm
Heatsink Dimensions 127×90×158 mm
Net Weight 1040 g
Heatpipe Ø6 mm×5 pcs
Fan Dimensions 120×120×25 mm
Fan Speed 500~1850 RPM±10%
Fan Airflow 68.99 CFM
Fan Air Pressure 2.19 mmAq
Fan Noise ≤31.5 dB(A)
Fan Speed (with LSP) 500~1550 RPM±10%
Fan Airflow (with LSP) 52.24 CFM
Fan Air Pressure (with LSP) 1.2 mmAq
Fan Noise (with LSP) ≤25.9 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.12 A
Fan Power Consumption 1.44 W
